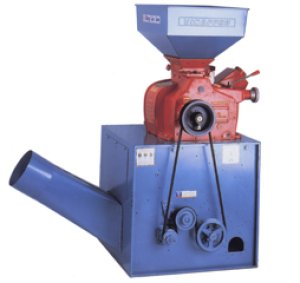

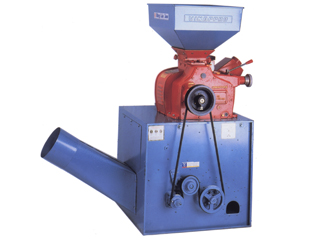

Rice Huller HW60A

Details

Comment

Capacity 1200-2000 kg/hr, belt size A-83 x 1, weight 165kg, required power to diesel engine 5Hp and Motor 3,5KW

Feature:

Simple structure, compact size. Easy to operate, maintenance and move.

Height durability as all parts are designed and produced with height accuracy.

By changing the spring press, the pressure inside the polishing chamber is maintained constant enabling the maximum efficiency and minimum breakage.

Equipped with a cover to keep the room clean from fine dust.

Model		HW - 60A
Capacity		1200 ÷ 2000
Require power	Diesel engine	5Hp
	Electric motor	3.5Kw
Revolution	Main shaft	1100
	Blower fan	1641-1880
Diameter of pulley	Main shaft pulley	Ø 180 x 2B
	Driver fan pulley	Ø 127 x 1A
	Fan shaft pulley	Ø 83 x 1A
Belt size		A83 X 1
Overall dimension	Length	1428 mm
	Width	857 mm
	Height	1504 mm
Weight		165 Kg
Rubber roll:(Length x Diameter)		6" x 8³/₄"
